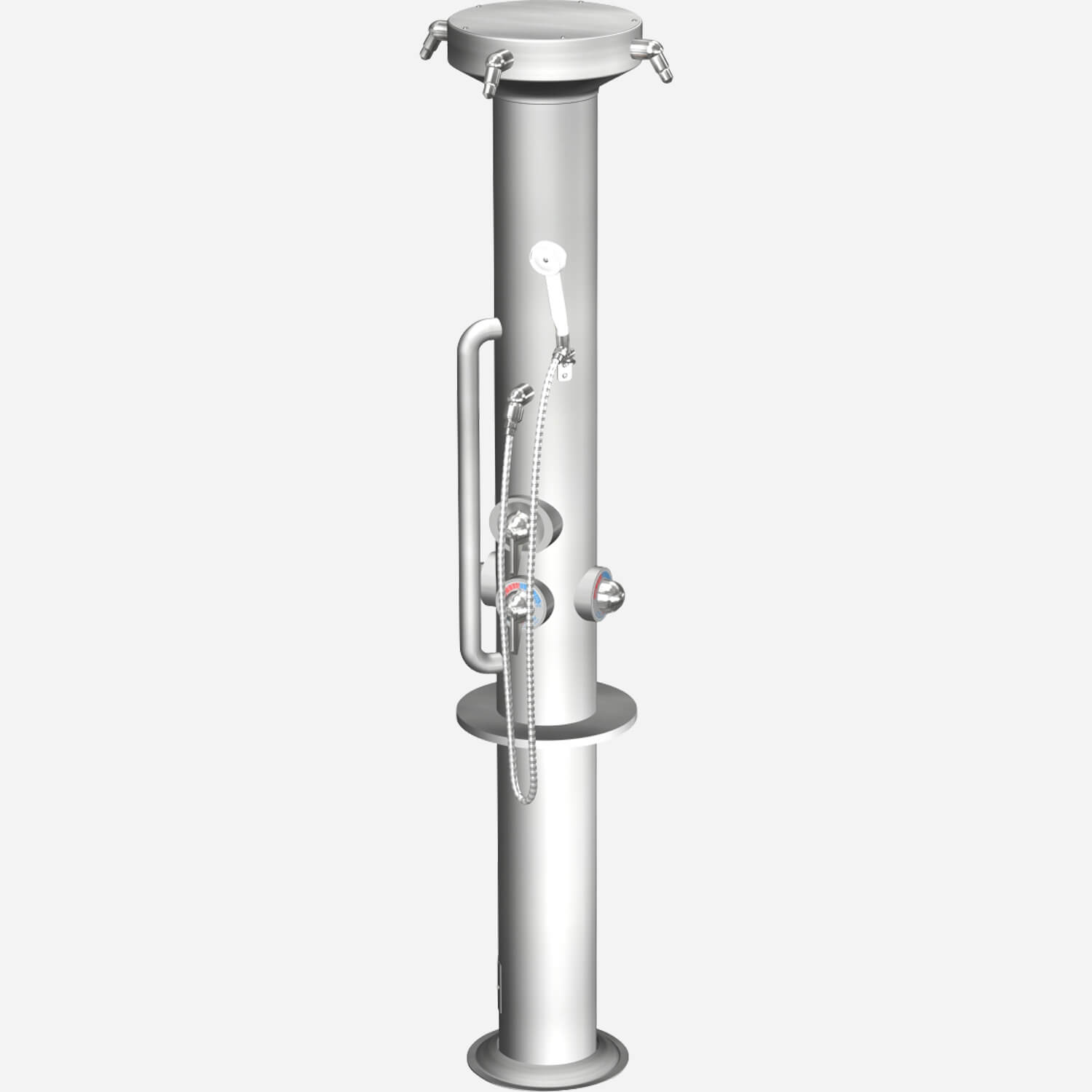

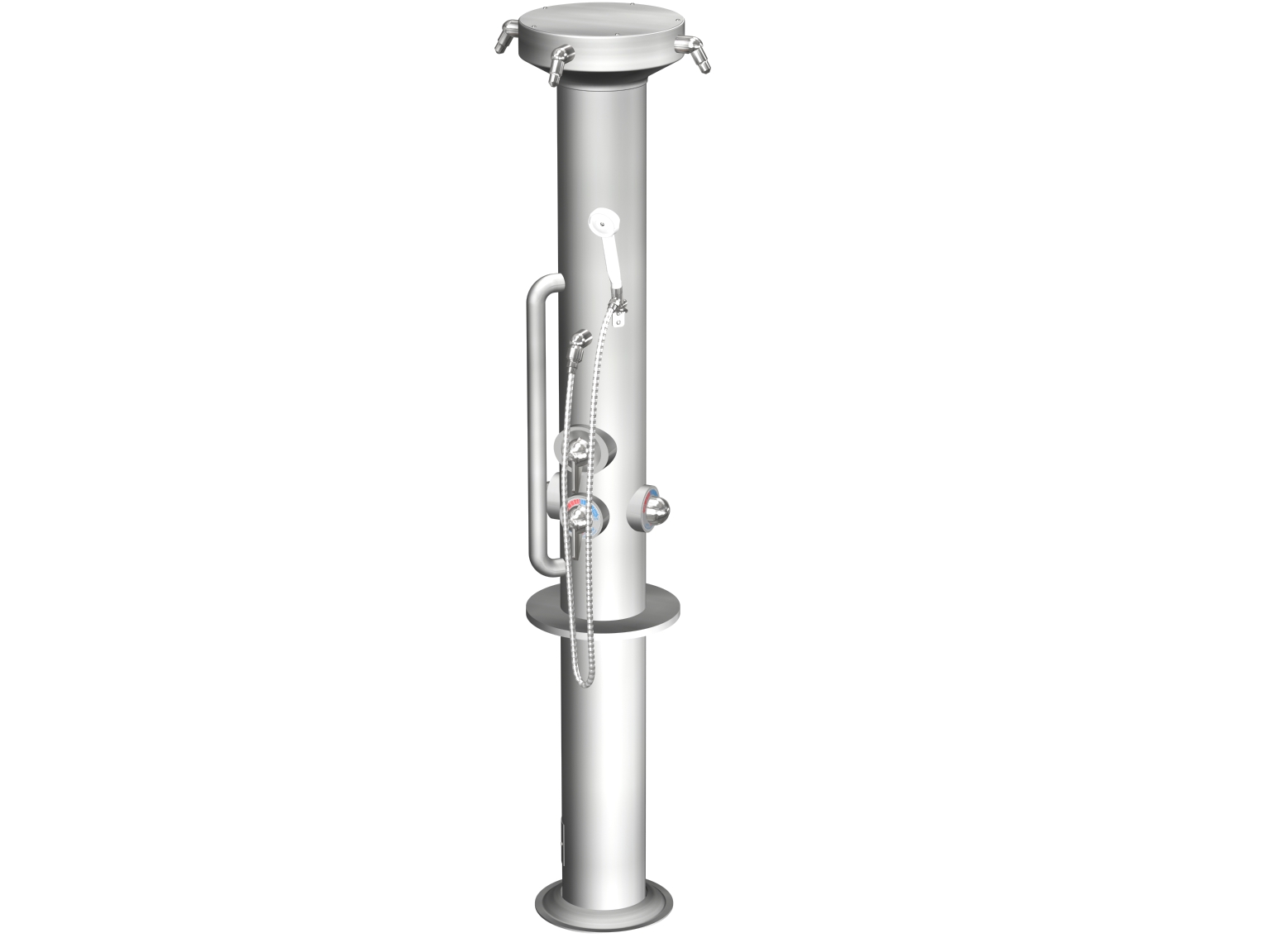

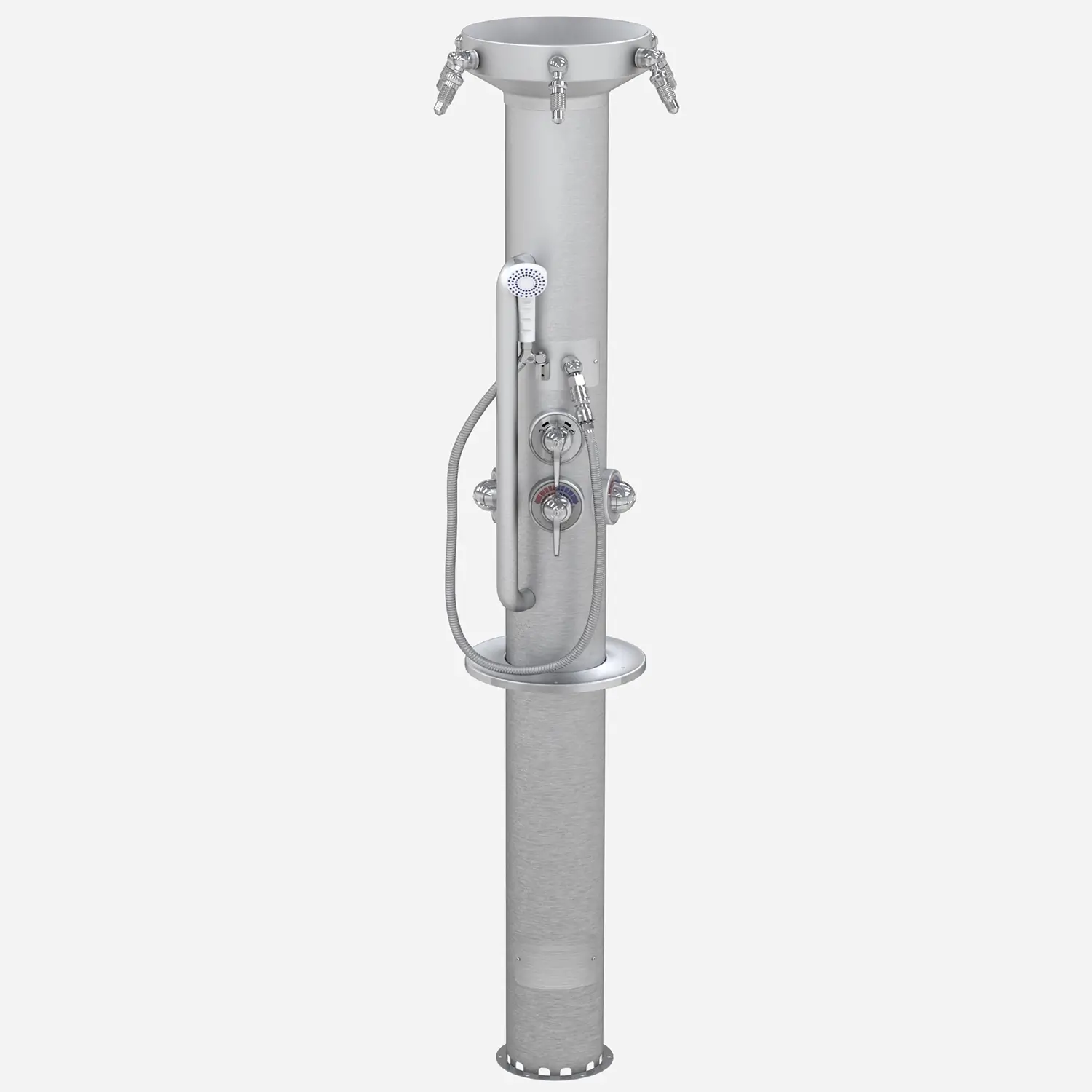

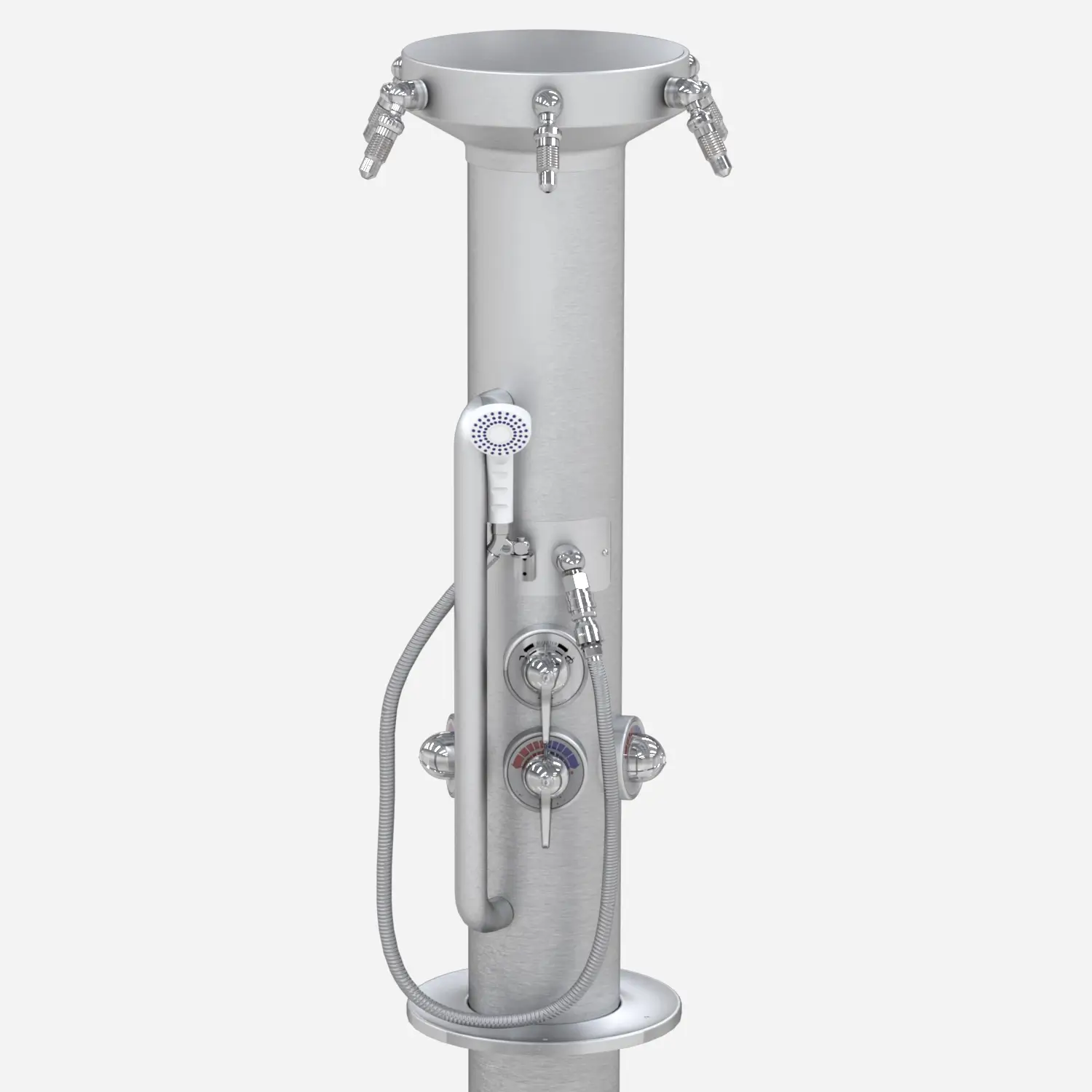

Barrier-Free (Non-ADA) Cylindrical Stainless Steel Column Shower
Column shall be 16 gauge, type 304 stainless steel with satin finish. Column shall be factory pre-piped and hydrostatically tested to 150 PSI. Drain base shall be heavy cast iron with a rust preventative coating. Provide handicap station complete with diverter valve, fixed upper head, handshower and vertical grab bar. Though the shower fixture is handicap accessible, the product is NOT ADA compliant.
Several valve options are available. Air-Control Pneumatic Pushbutton Valve (7__6) and Safti-Trol, H & C Pressure Balancing Valve (7__2). Electronic Valves include Master-Trol (-EVS1, -EVSP1), Master-Trop Plus (-MTP1, -MPPP1), Time-Trol (-MVC1), Programmable Piezo Button).
On showers utilizing vent off drains (Options -B15, -B25, -T15, -T25), a thermostatic controller (Option -TC) may be specified.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base with Dome Grate | 0 | 2 MB | ||
| | Capital Cylindrical Handicap (Non-ADA) Column Shower [720HC, 722HC, 726HC | Two-Station Shower; 730HC, 732HC, 736HC | Three-Station; 740HC, 742HC, 746HC | Four-Station; 750HC, 752HC, 756HC | Five-Station; 760HC, 762HC, 766HC | Six-Station] | 0 | 193 KB | ||
| | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base with Dome Grate for Center Vent | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base for Center Vent | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base with Dome Grate | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base with Dome Grate for Center Vent | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base for Center Vent | 0 | 2 MB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
 | | Four Station, Drain Base Bottom Supply with Dome Grate, Single Temperature Flo-Cloz Valve | 0 | 96 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 0 | 70 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru Present | 0 | 333 KB | ||
| | Shower Heads: Shower Nozzle Assembly - Rigid Head | 0 | 132 KB | ||
| | Shower Heads: Standard Shower Head | 0 | 58 KB | ||
| | Shower-Ware - Column Drains: 3" No Hub-Vent Off Drain Base Assembly | 0 | 95 KB | ||
| | Shower-Ware - Column Drains: 4" No Hub-Vent Off Drain Base Assembly | 0 | 94 KB | ||
| | Shower-Ware - Column Drains: 3" No Hub-Vent Off Drain Base Dome Grate | 0 | 109 KB | ||
| | Shower-Ware - Column Drains: 4" No Hub-Vent Off Drain Base Dome Grate | 0 | 110 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 0 | 157 KB | ||
| | Shower-Ware - Cartridges: T/P Temperature/Pressure Balancing Mixing Valve Cartridge/Checkstops | 0 | 493 KB | ||
| | Shower-Ware - Cartridges: Meter-Matic Cartridge (Plastic) | 0 | 72 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru January 2014 | 0 | 130 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 0 | 74 KB |
Specifications
| Product Features | Handicap (Non-ADA), Cylindrical |
| Material | Stainless Steel |
| Brand | Shower-Ware® |
| Product Type | Shower |
| Mounting | Pedestal |
| Accessibility | Barrier-Free -- Not ADA |
Models
Shower Heads are solid brass, triple chrome-plated and include a 1.6 gallons (6 liter) per flow restrictor. The Acorn Logan Wizard Shower Head design provides self-cleaning with every use, and has an adjustable spray pattern from a coarse stream to a fine mist.
Handicap Station is located at Station #1 and includes a lever handle diverter valve for hand shower and fixed upper head. Hand shower includes 60" long stainless steel hose and mounting bracket. Diverter valve is located at 48" above the floor (6'-0" discharge). Handicap station includes welded vertical 24" grab bar. Shower does not conform with ADA Accessibility Guidelines.
Shower Heads are solid brass, triple chrome-plated and include a 1.6 gallon (6 liters) per minute flow restrictor. The Acorn Logan Wizard Shower Head design provides self-cleaning with every use, and has an adjustable spray pattern from a coarse stream to a fine mist.
The model numbers are defined with the valve that is specified for the shower.
Model Number 7__6HC

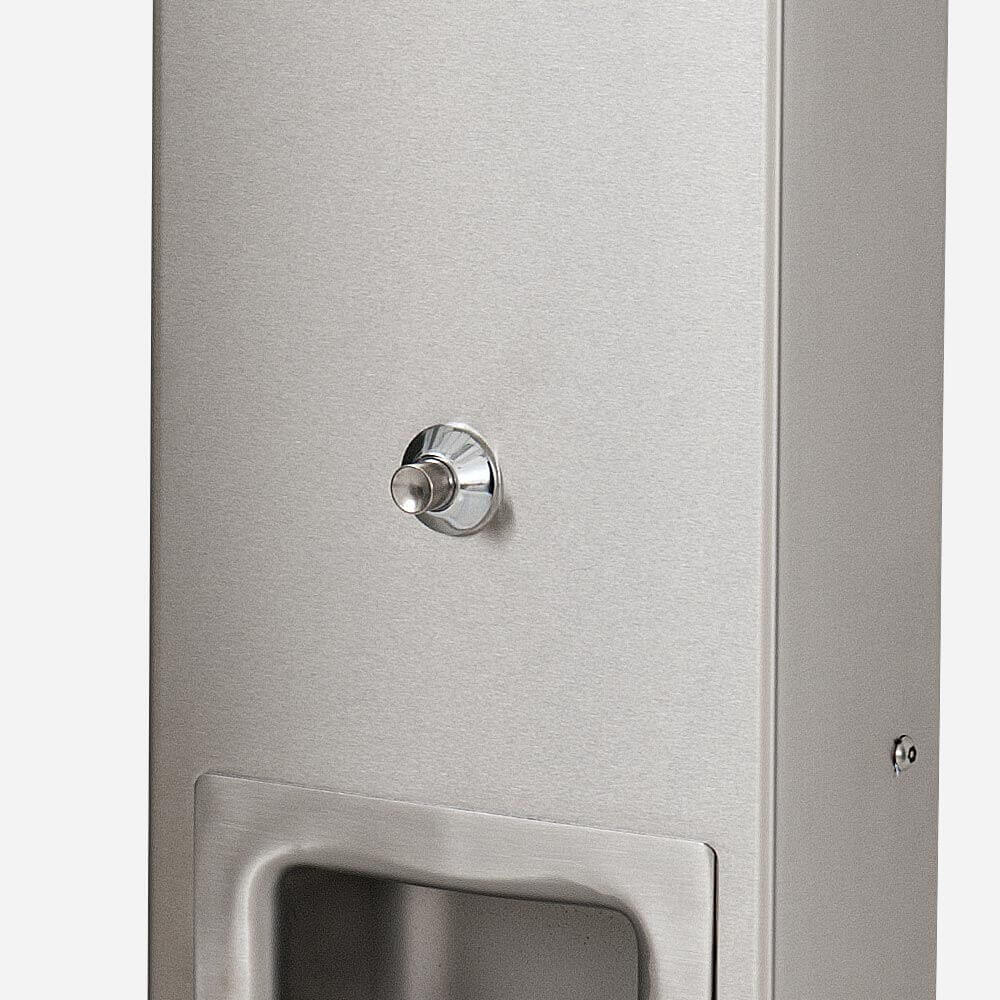

Air-Control Valve,
Single Temperature Metering
Model 726HC - 2 Station
Model 736HC - 3 Station
Model 746HC - 4 Station
Model 756HC - 5 Station
Model 766HC - 6 Station
Model Number 7__2HC

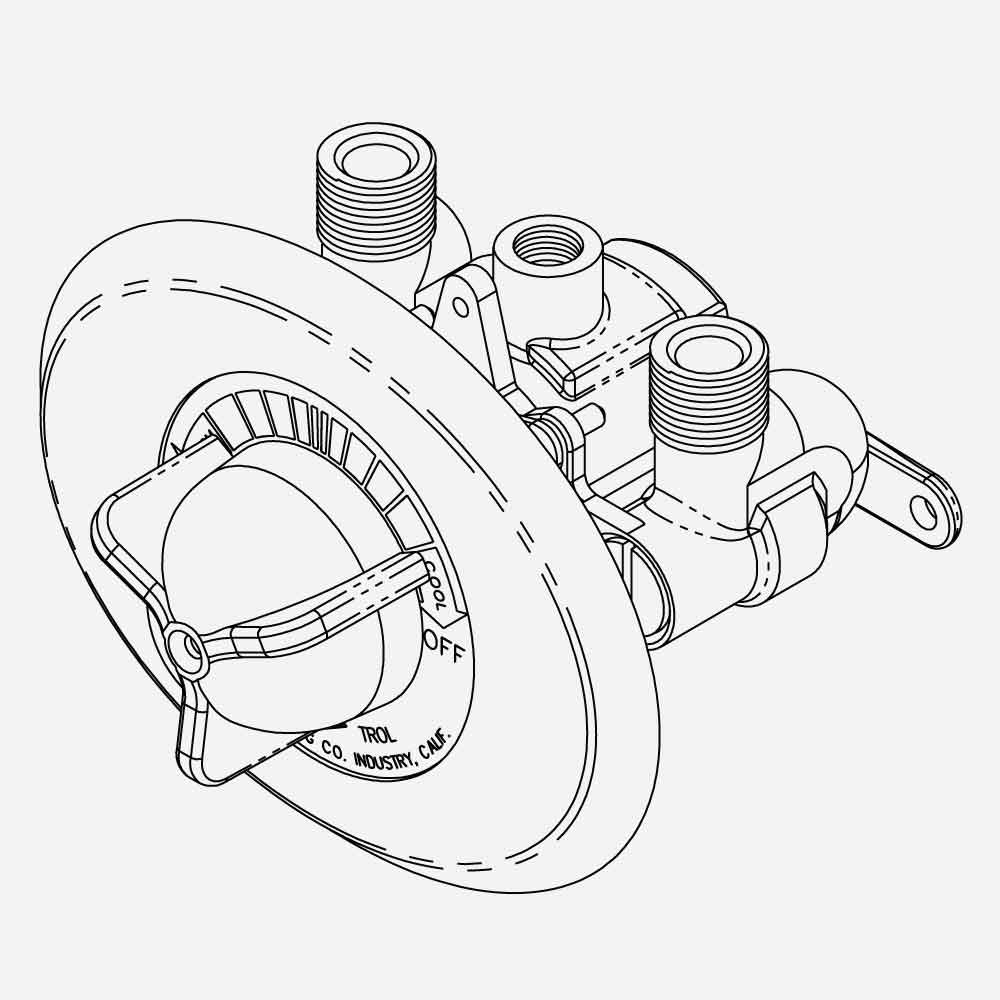

Saft-Trol Piston-Operated
Pressure Balancing Valve
Valve with Lever Handle also available
Model 728HC - 2 StationModel 738HC - 3 StationModel 748HC - 4 StationModel 758HC - 5 StationModel 768HC - 6 Station
ELECTRONIC VALVES
Model 720HC - 2 Station; Model 730HC - 3 Station; Model 740HC - 4 StationModel 750HC - 5 Station; Model 760HC - 6 Station
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
SUPPLY/DRAIN TYPE
Top Supply with
-T11 | Drain Base with Dome Grate | install
-T15 | Drain Base with Center Vent, Drain Grate | install
-T21 | Drain Base | install
-T25 | Drain Base with Center Vent | install
Bottom Supply with
-B11 | Drain Base with Dome Grate | install
-B15 | Drain Base with Center Vent, Drain Grate | install
-B21 | Drain Base | install
-B25 | Drain Base with Center Vent | install
