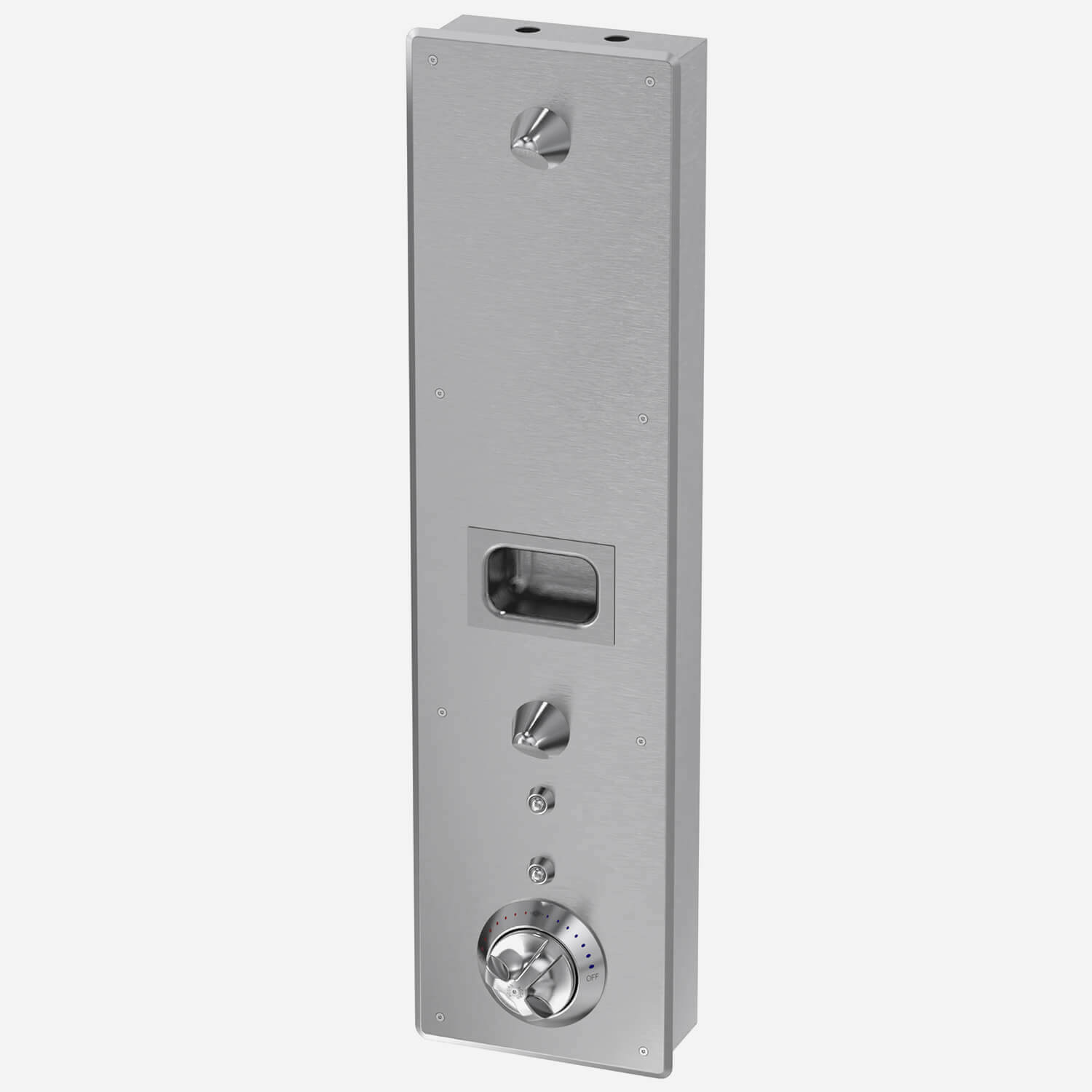

Secur-Care® Ligature-Resistant, Front Accesss ADA Compliant Stainless Steel Security Shower with T/P Mixing Valve, Dual Showerhead

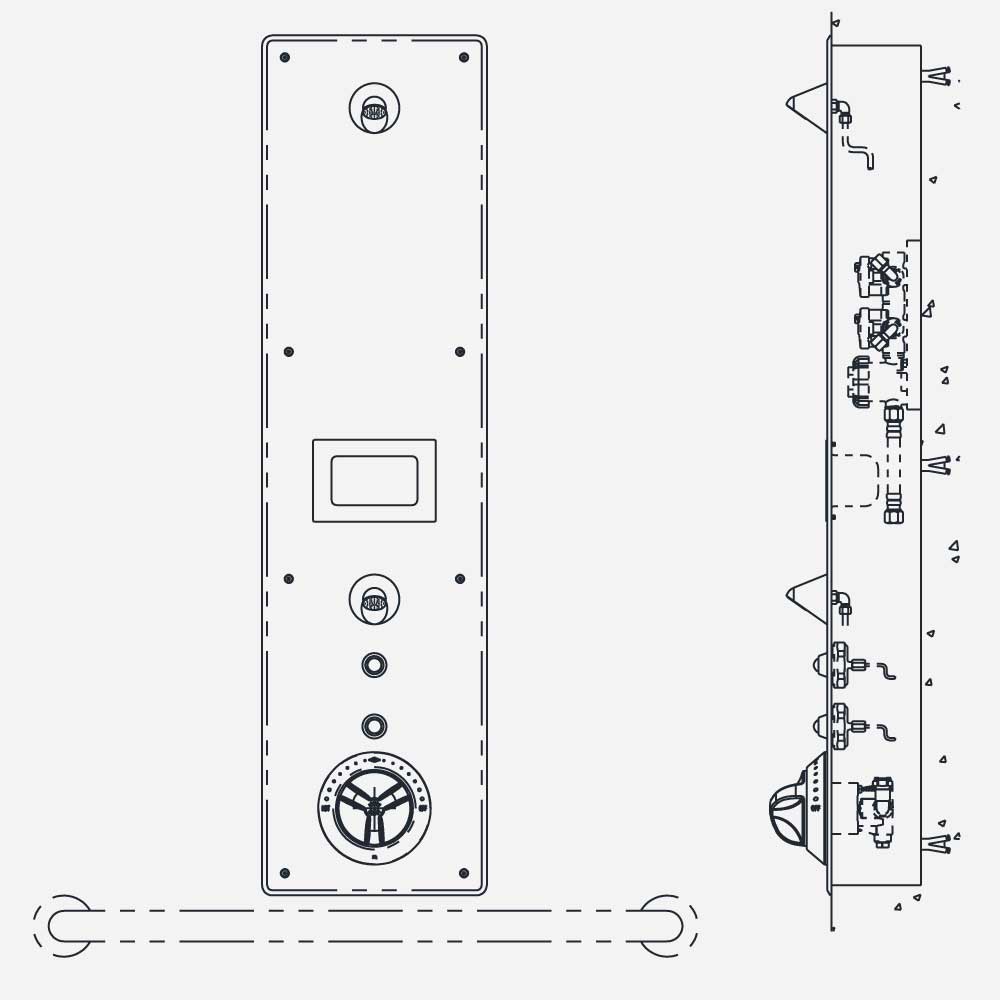

Shower with Mixing Valve Control is designed to be installed on a finished wall and serviced through removable front panel. Mounting frame is provided. The fixture is fabricated from 14 gauge, type 304 stainless steel and the exterior has a #4 satin finish. Unit conforms with ANSI, UFAS and ADA requirements for accessibility. IMPORTANT: ADA Compliance is subject to the interpretation and requirements of the Local Code Authority.

NOTE: Not intended for use in California, refer to appropriate CBC Title 24 Compliant Shower.

Conical Showerheads for both upper and lower fixed head are provided. CSH style heads are chrome-plated brass and are Ligature Resistant with a non-adjustable multi-stream spray.

Valve Controls include an ASSE 1016 Compliant T/P Temperature/Pressure Balancing Mixing Valve with Patented Tri-Lever Handle and a pneumatically operated, Pushbutton Metering Air-Control Valve to activate either Upper or Lower Shower Head. Air-control Valve is metering, non-hold open type and is adjustable from 5 to 60 seconds. Pushbuttons are Ligature-Resistant, Hemispherical design and require less than 5 pounds of force to activate. Air-control Valve includes a 1.6 GPM flow restrictor. Valves conforms with Lead-Free requirements of NSF61, Section 9.

Regularly furnished items include an ADA compliant H&C Mixing Valve, an ADA compliant Metering Valve actuated by two Hemispherical Pushbuttons, two Conical Showerheads, Recessed Soap Dish,and necessary Fasteners (Mounting hardware by others). Grab Bar and Folding Seat by others. Refer to accessibility standards and guidelines for additional installation requirements.
