Single-Panel Stainless Steel Security Shower for Rear Mount (Chase) Application
The shower is arranged to be installed on the finished wall and serviced from an accessible pipe chase. The showerhead and valve are mounted on a 14 gauge, type 304 stainless steel panel. Various valves are available including Acorn's pneumatic push-button Air-Control® valve, ASSE 1016 compliant Temperature-Pressure Balancing Mixing Valve, various electronic valves.
For remote tempering, an optional mixing valve compliant to ASSE 1070 and 1069 is available (Option ST7069).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Single-Panel Stainless Steel Security Shower for Rear Mount (Chase) Application with Metered Single Temperature Air-Control Pneumatic Valve | 0 | 256 KB | ||
| | Single-Panel Stainless Steel Security Shower for Rear Mount (Chase) Application | 0 | 121 KB | ||
 | | 1741 Shower (rfa) | 0 | 332 KB | ||
| | 0 | 145 KB | |||
| | Single-Panel Stainless Steel Security Shower for Rear Mount (Chase) Application with Single Temperature Time-Trol Valve | 0 | 558 KB | ||
| | Single-Panel Stainless Steel Security Shower for Rear Mount (Chase) Application with Metered Hot & Cold Air-Control Pneumatic Valve | 0 | 234 KB | ||
| | Single-Panel Stainless Steel Security Shower for Rear Mount (Chase) Application with Hot & Cold Time-Trol Valve | 0 | 568 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
 | | Metering Single Temperature Air-Control Valve, Recess Soap Dish | 0 | 57 KB | ||
| | Metering Hot & Cold Air-Control™, Recessed Soap Dish | 0 | 228 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 0 | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 0 | 130 KB | ||
| | Trims: Mounting Hardware, Penal FixtureS | 0 | 96 KB | ||
| | Shower Heads - Penal: Penal-Ware Shower Head and Space Saver | 0 | 146 KB | ||
| | Valves: Hot and Cold Valve Body Assembly for Penal-Trol Showers (Thru JAN 1999) | 0 | 58 KB | ||
| | Valves: Single Temp Valve Penal-Trol Showers (Thru JAN 1999) | 0 | 55 KB | ||
| | Trims: Fixture Trim, Hot and Cold Penal-Trol (Showers) | 0 | 51 KB | ||
| | Trims: Fixture Trim, Single Temp Penal-Trol (Showers) | 0 | 49 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB | ||
| | 1741-8MV | Shower with ASSE 1016 compliant Temperature-Pressure Balancing Mixing Valve; Metering valve in the riser (Dwg No. 9925-156-001) | 0 | 293 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Penal-Ware® |
| Material | Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Vandal Resistant | High |
| Institutional Applications | Correctional |
| Park and Recreation Applications | Yes |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | 8 (security shower valve) | Option: Temperature/Pressure Mixing Valve for Security Shower | ||
 | 8MV | Option: Temperature Pressure Balancing Valve with Metering Valve in Riser | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | CSH | Option: Conical Shower Head | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | F1.6 | Option: Flow Control 1.6 GPM | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MT | Option: Metal Template | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
 | PYY | Option: Penal Showerhead with Universal Lockable Joint | ||
 | RD | Option: Recessed Soap Dish | ||
 | SSV | Option: Penal Space Saver Shower Head |
Models
Typical models are shown below
1741-03-M-D
Single Temp Pneumatic Pushbutton
Air-Control® Valve;
cantilever mount soap dish
install

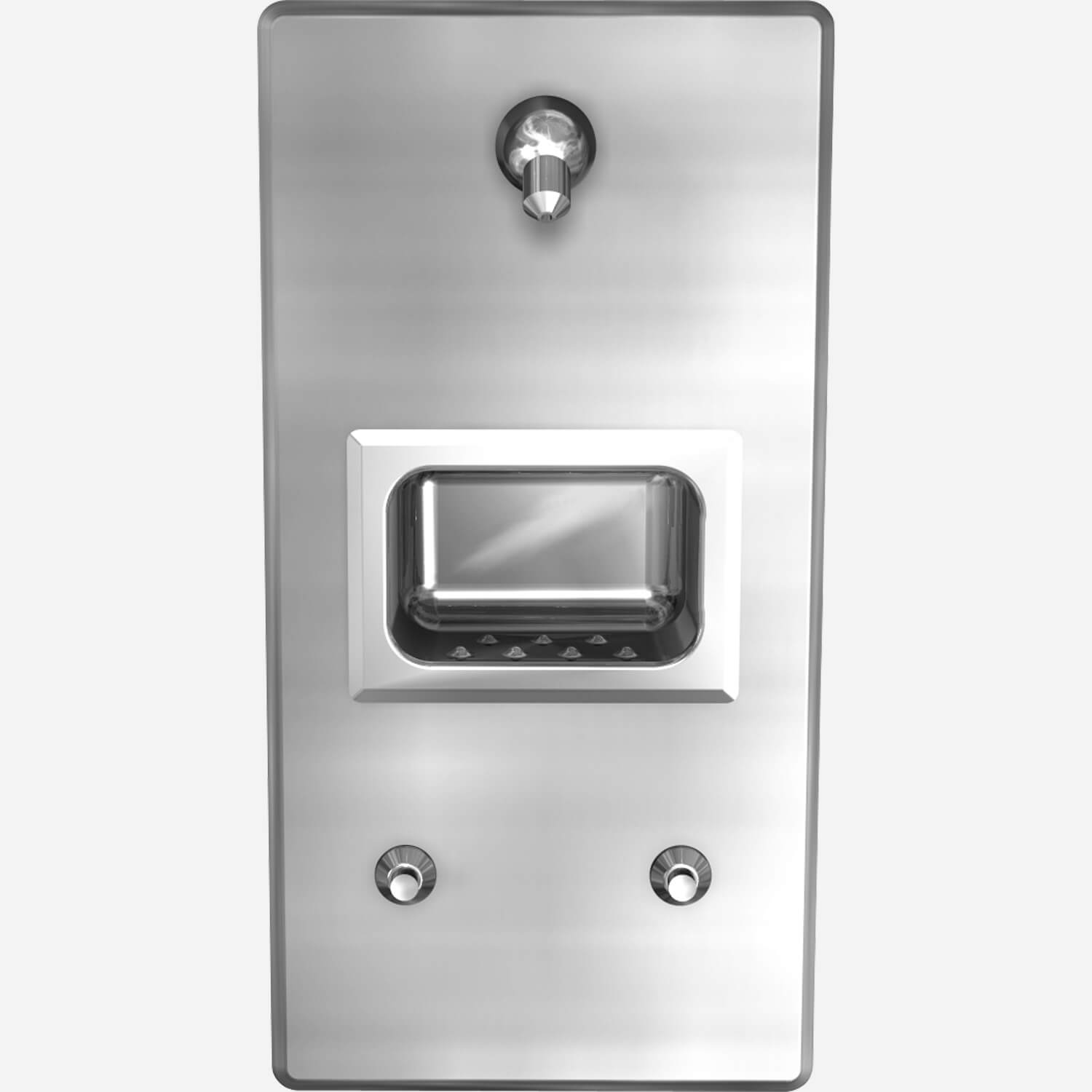

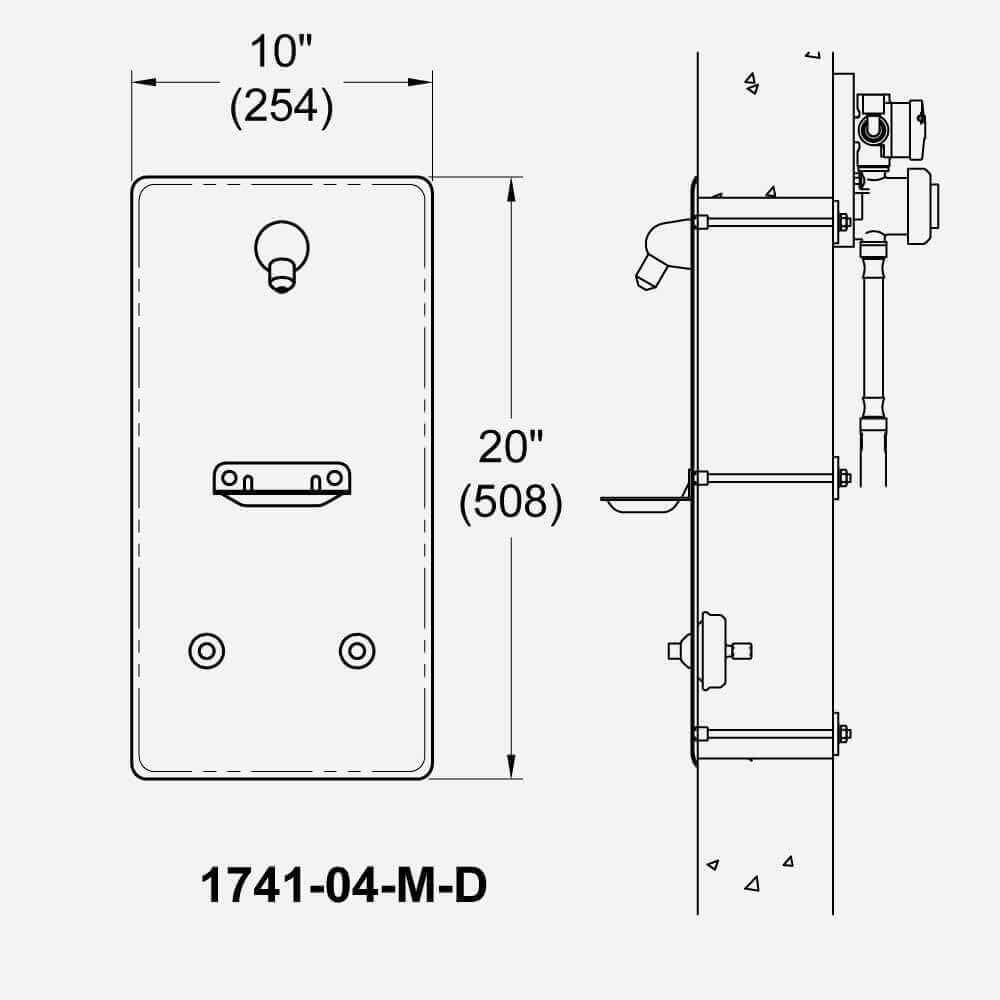

1741-04-M-D
Hot and Cold Pneumatic Pushbuttons
Air-Control® Valve;
cantilever mount soap dish
install

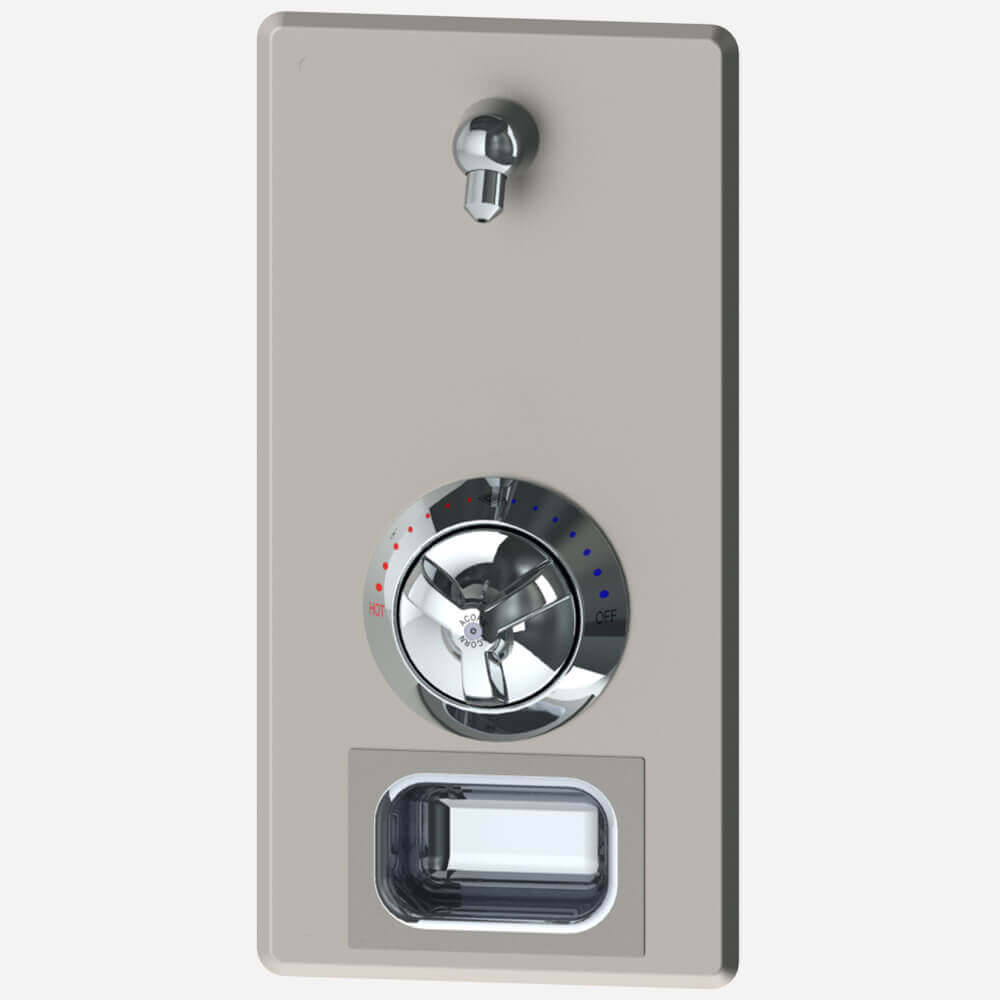

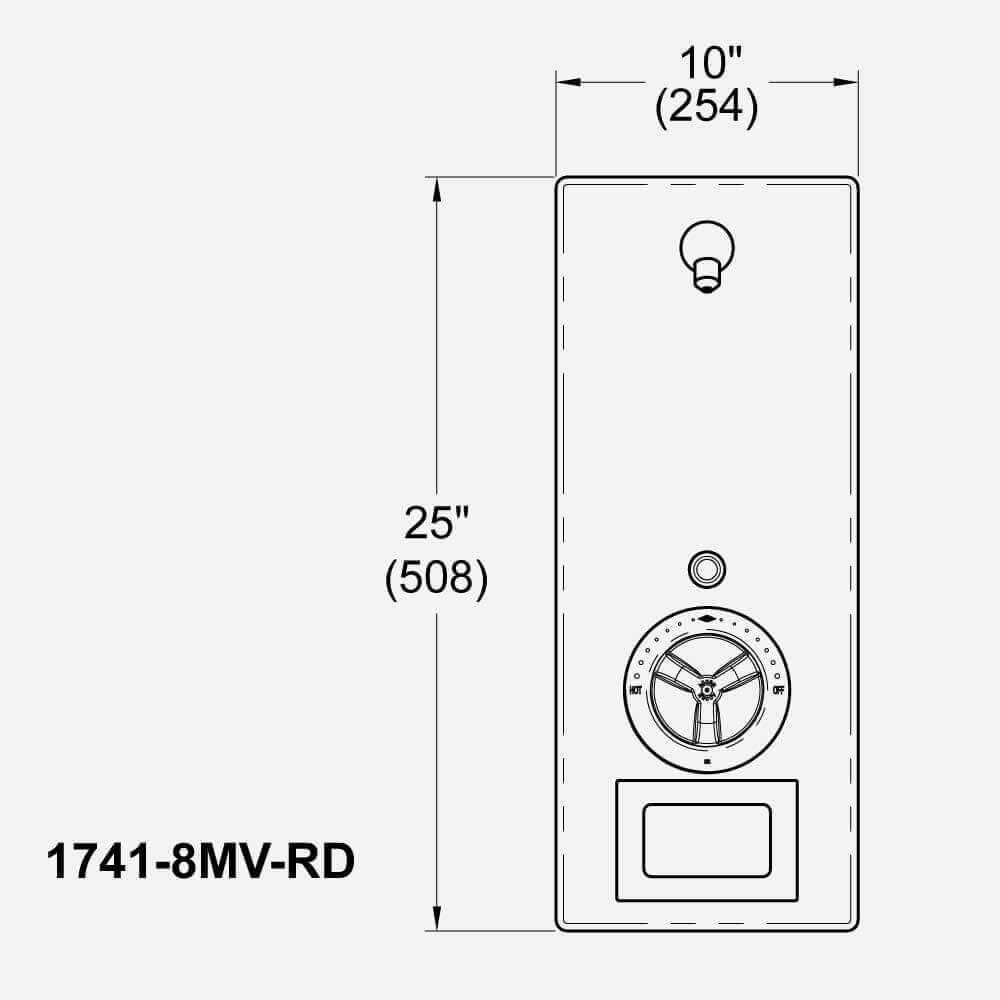

1741-8MV-RD
ASSE 1016 compliant
Temperature-Pressure
Balancing Mixing Valve;
Metering valve in the riser;
recessed soap dish
ELECTRONIC VALVES-The following electronic valve options are available:
Master-Trol® -EVS1 | Single Temperature; -EVS2 | Hot and Cold; -EVSP1 | Single Temperature with Piezo Button; -EVSP2 | Hot and Cold wth Piezo Buttons
Master-Trol® Plus -MTP1 | Single Temperature; -MTP2 | Hot and Cold; -MTPP1 | Single Temperature with Piezo Button; -MTPP2 | Hot and Cold wth Piezo Buttons
Time-Trol® -MVC1 | Single Temperature install; -MVC2 | Hot and Cold install
Programmable Piezo Buttons -PPZ1 | Single Temperature; -PPZ2 | Hot and Cold
