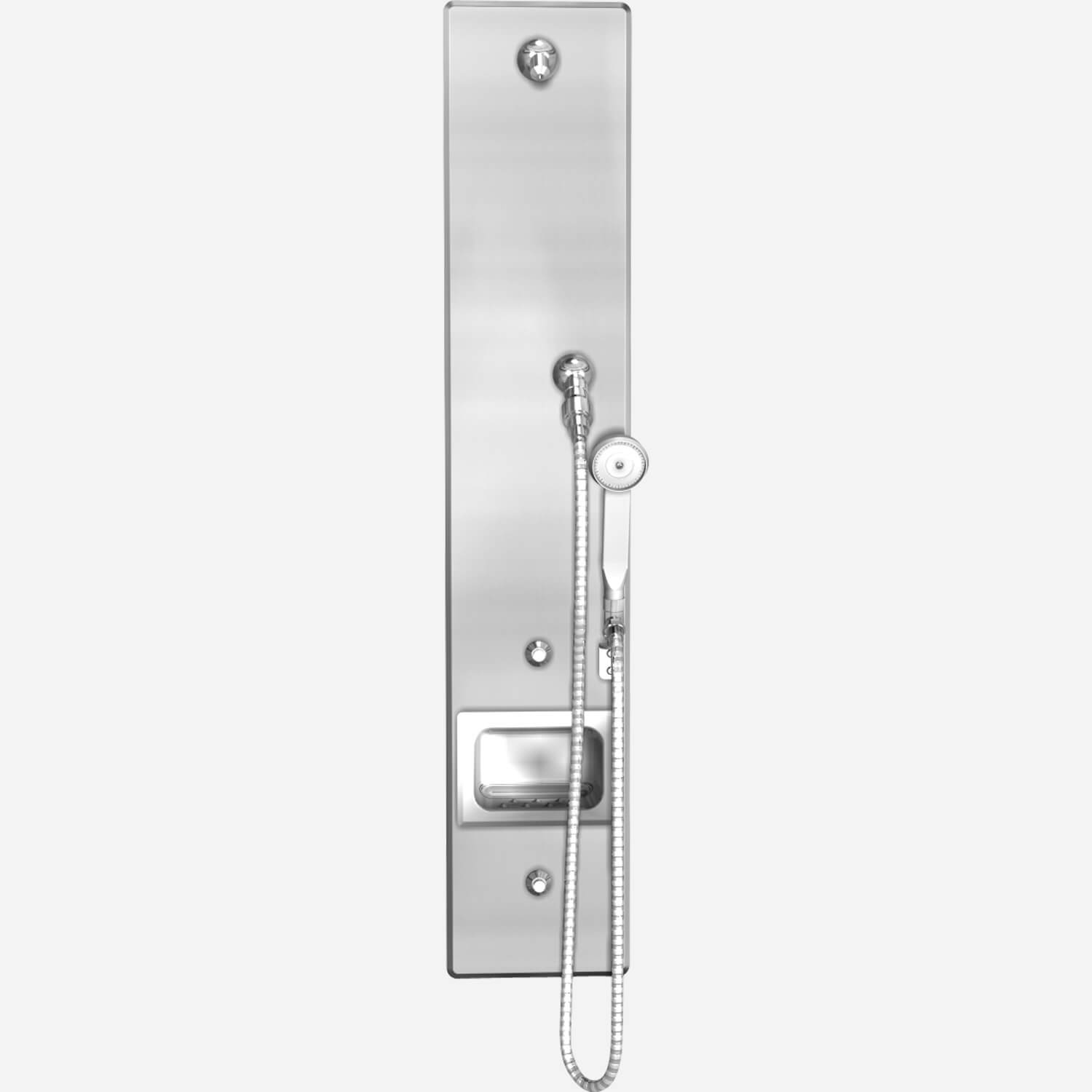

ADA, Single-Panel Stainless Steel Security Shower for Rear Mount (Chase) Application
The shower is designed to be installed on a finished wall and serviced from an accessible pipe chase. The fixture is fabricated from 14 gauge, type 304 stainless steel, and the exterior has a #4 satin finish. The unit conforms with ANSI, UFAS, and ADA requirements for accessibility. Compliance is subject to the interpretation and requirements of the local code authority.
Various valves are available including Acorn's pneumatic push-button Air-Control® valve, ASSE 1016 compliant Temperature-Pressure Balancing Mixing Valve, various electronic valves.
For remote tempering, an optional mixing valve compliant to ASSE 1070 and 1069 is available.(Option -ST7069)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA, Single-Panel Stainless Steel Security Shower for Rear Mount (Chase) Application | 0 | 313 KB | ||
| | ADA, Single-Panel Stainless Steel Security Shower for Rear Mount (Chase) Application | 0 | 140 KB | ||
 | | 1741ADA Shower (rfa) | 0 | 764 KB | ||
| | 0 | 293 KB | |||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
 | | Metering Hot & Cold Air-Control Valves, Recess Soap Dish | 0 | 162 KB | ||
| | Metering Single Temp Air-Control Valves, Recess Soap Dish | 0 | 129 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Valves: Hot and Cold Air-Control™ Valve Body Assembly (-04) | 0 | 82 KB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 0 | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 0 | 130 KB | ||
| | Trims: Mounting Hardware, Penal FixtureS | 0 | 96 KB | ||
| | Shower Heads - Penal: Penal-Ware Shower Head and Space Saver | 0 | 146 KB | ||
| | Shower Heads: Flex Shower Head | 0 | 132 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Penal-Ware® |
| Material | Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Vandal Resistant | High |
| Institutional Applications | Correctional |
| Park and Recreation Applications | Yes |
| Accessibility | ADA Compliant |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | CSH | Option: Conical Shower Head | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | F1.6 | Option: Flow Control 1.6 GPM | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | FH | Option: Fixed Head in Lieu of Handshower | ||
 | LRD | Option: Less Recessed Soap Dish | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
 | PYY | Option: Penal Showerhead with Universal Lockable Joint | ||
 | SSV | Option: Penal Space Saver Shower Head |
Models
The showerhead and valves are mounted on a tall single trim panel. The panel is designed to be installed in a rear/chase mount application.

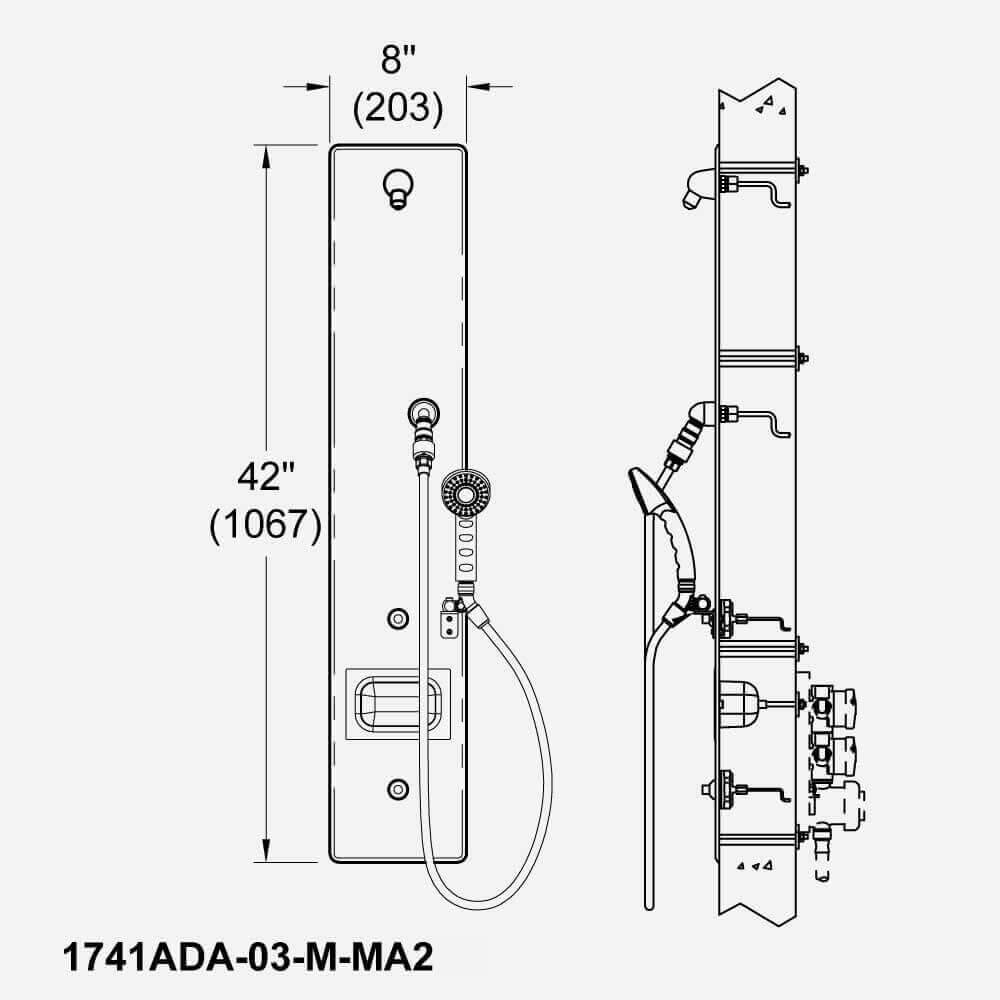

1741ADA-03-M-MA2
Single Temp Metered Pneumatic Push Button Air-Control® Valve; Recessed soap dish; Upper shower head for general use and lower (handheld) shower for ADA user

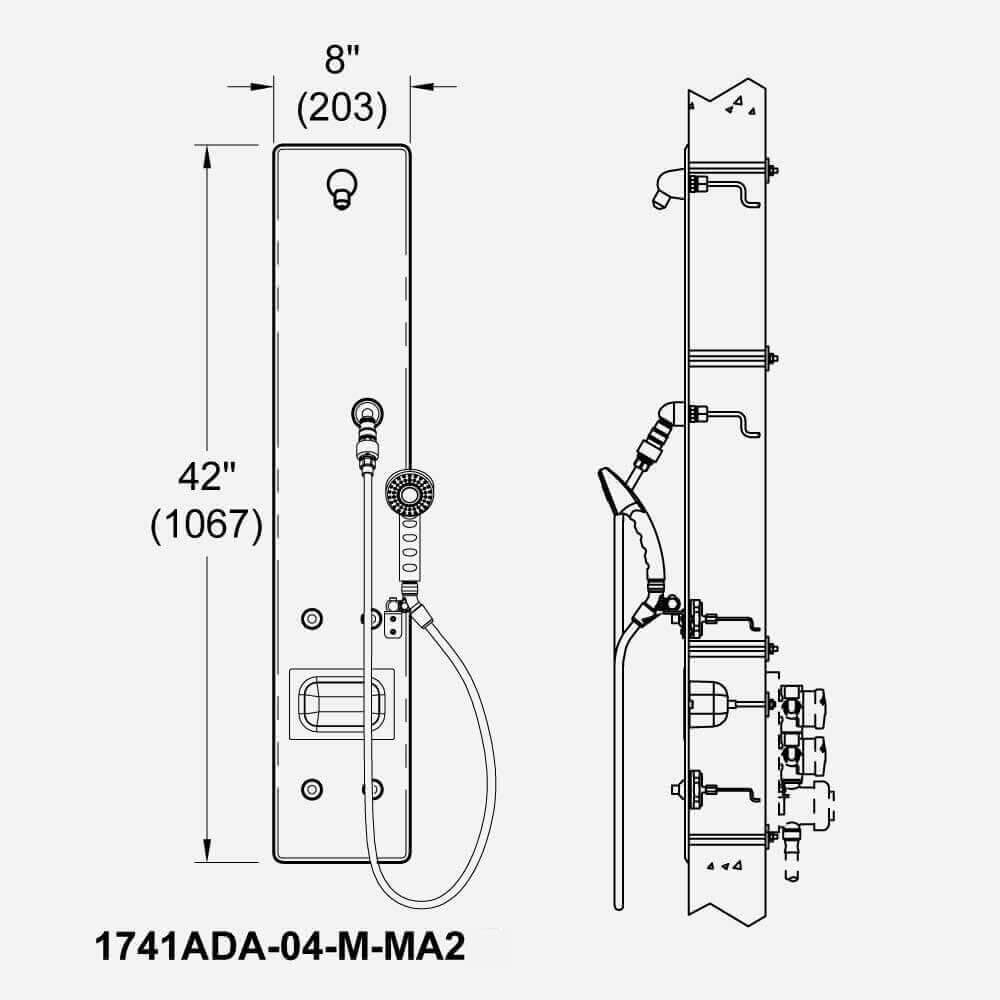

1741ADA-04-M-MA2
Hot & Cold Metered Pneumatic Push Button Air-Control® Valve; Recessed soap dish; Upper shower head for general use and lower (handheld) shower for ADA user

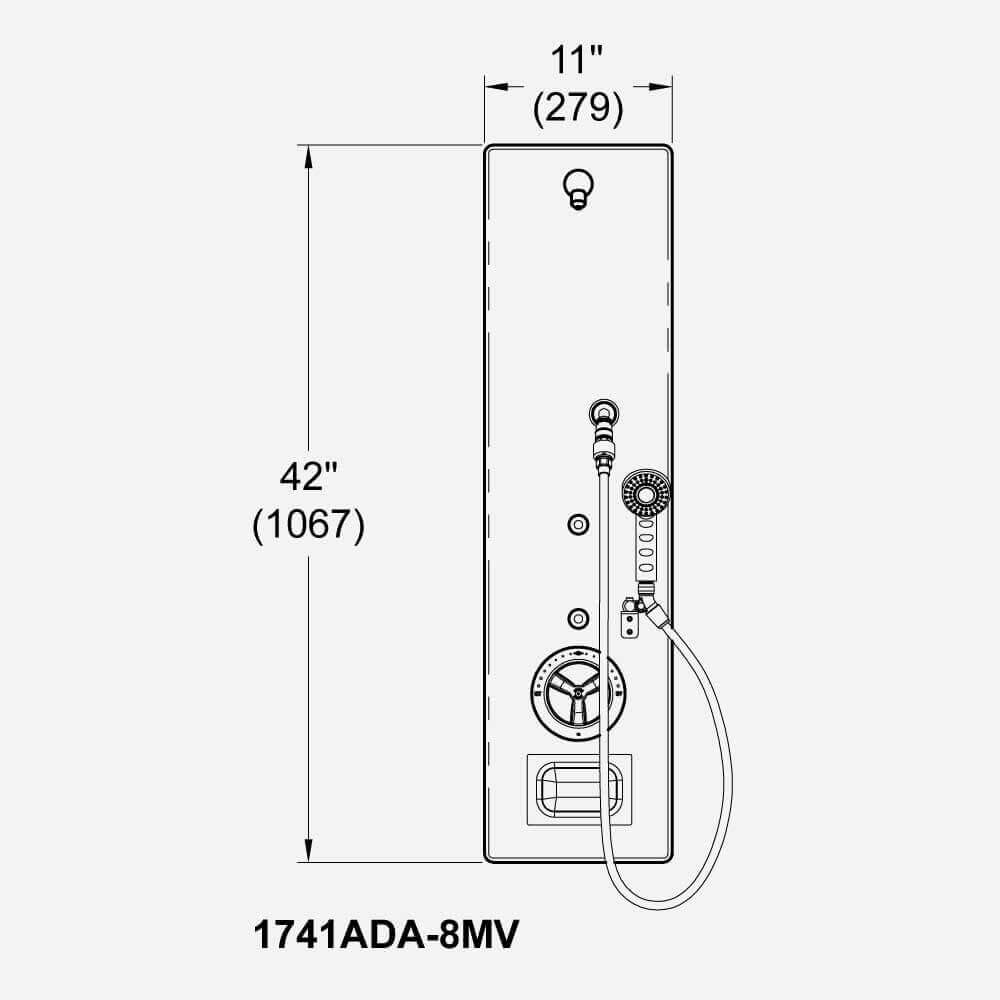

1741ADA-8MV
ASSE 1016 compliant Temperature-Pressure Balancing Mixing Valve; Metering valve in the riser; recessed soap dish; Upper shower head for general use and lower (handheld) shower for ADA user
ELECTRONIC VALVES-The following electronic valve options are available:
Master-Trol® -EVS1 | Single Temperature; -EVS2 | Hot and Cold; -EVSP1 | Single Temperature with Piezo Button; -EVSP2 | Hot and Cold wth Piezo Buttons
Master-Trol® Plus -MTP1 | Single Temperature; -MTP2 | Hot and Cold; -MTPP1 | Single Temperature with Piezo Button; -MTPP2 | Hot and Cold wth Piezo Buttons
Time-Trol® -MVC1 | Single Temperature; -MVC2 | Hot and Cold
Programmable Piezo Buttons -PPZ1 | Single Temperature; -PPZ2 | Hot and Cold
