Front Access, Single-Panel Stainless Steel Security Shower
The shower is arranged to be installed on the finished wall and serviced through a removable Front Panel. A mounting frame is provided. The fixture is fabricated from 14 gauge, type 304 stainless steel. The exterior has a #4 satin finish.
Various valves are available including Acorn's pneumatic push-button Air-Control® valve, ASSE 1016 compliant Temperature-Pressure Balancing Mixing Valve, various electronic valves.
For remote tempering, an optional mixing valve compliant to ASSE 1070 and 1069 is available (See Option -ST7069).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Front Access, Single-Panel Stainless Steel Security Shower [1741-3-FA | Single Temp Air Control Valve; 1741-4-FA | Hot and Cold Air Control Valve; 1741-8-FA | ASSE 1016-Compliant Type 8 T/P Balancing Commercial Shower Valve; 1741-8MV-FA | ASSE 1016-Compliant Type 8 T/P Balancing Commercial Shower Valve with Metering Valve in Riser] | 0 | 198 KB | ||
| | Front Access, Single-Panel Stainless Steel Security Shower | 0 | 133 KB | ||
 | | Security Cabinet Showers: 1730, 1732, 1736, 1736ADA-A, 1730FA, 1732FA, 1736FA; Security Shower Floor 1749; Security Wall Showers 1741, 1741FA, 1741ADA, 1741ADAFA, 1743 | 0 | 283 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Stainless Steel Fixtures and Accessories for Parks | 0 | 1 MB | ||
 | | Metering Single Temperature Air-Control Valve, Recess Soap Dish, Front Access | 0 | 202 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Tools / Fasteners: Washers, Nuts and Anchors | 0 | 74 KB | ||
| | Valves: Hot and Cold Air-Control™ Valve Body Assembly (-04) | 0 | 82 KB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 0 | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 0 | 130 KB | ||
| | Shower Heads - Penal: Penal-Ware Shower Head and Space Saver | 0 | 146 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Penal-Ware® |
| Material | Stainless Steel |
| Mounting | Front Access - Security |
| Vandal Resistant | Moderate |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Park and Recreation Applications | Yes |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | CSH | Option: Conical Shower Head | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | F1.6 | Option: Flow Control 1.6 GPM | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
 | PYY | Option: Penal Showerhead with Universal Lockable Joint | ||
 | RD | Option: Recessed Soap Dish | ||
 | SSV | Option: Penal Space Saver Shower Head |
Models
The showerhead and valves are mounted on a tall single panel mounting plate. The mounting plate is designed to be installed on a finished wall.

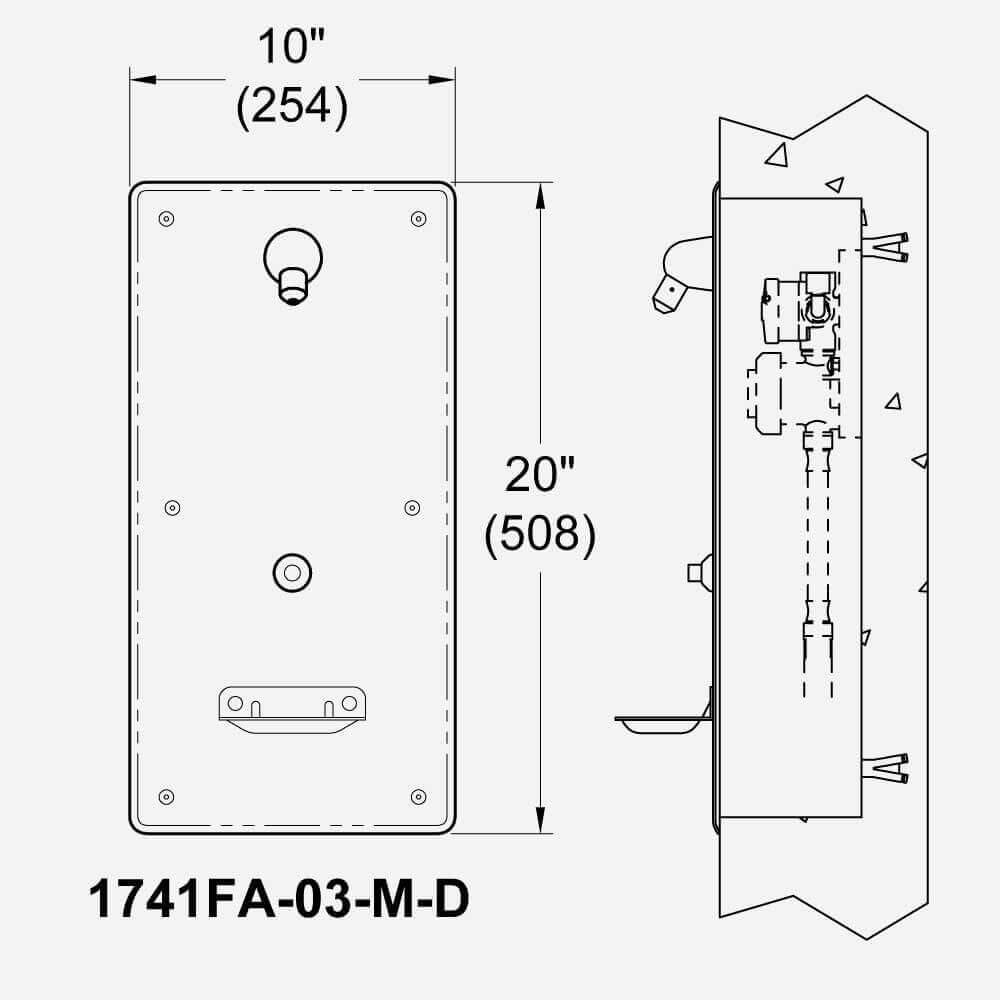

1741FA-03-M-D
Single Temp Metered Pneumatic Push Button Air-Control® Valve; cantilever mount soap dish

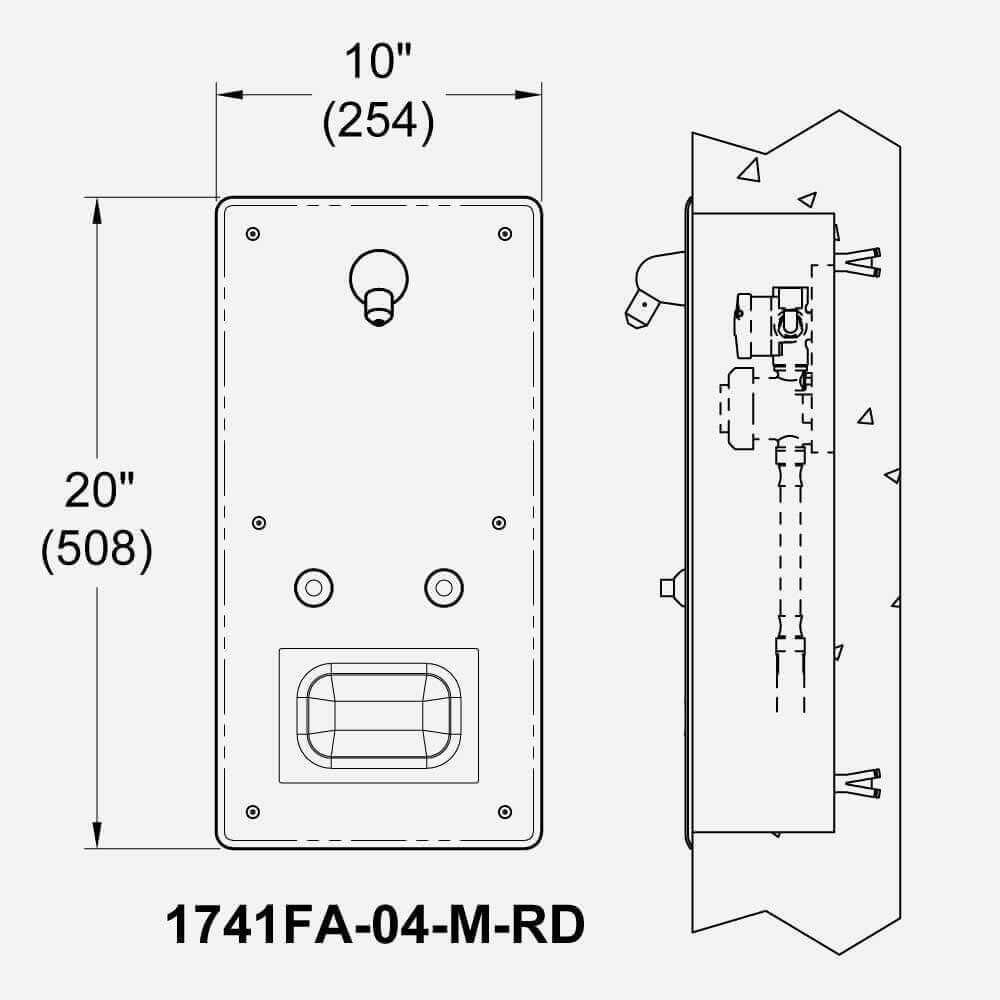

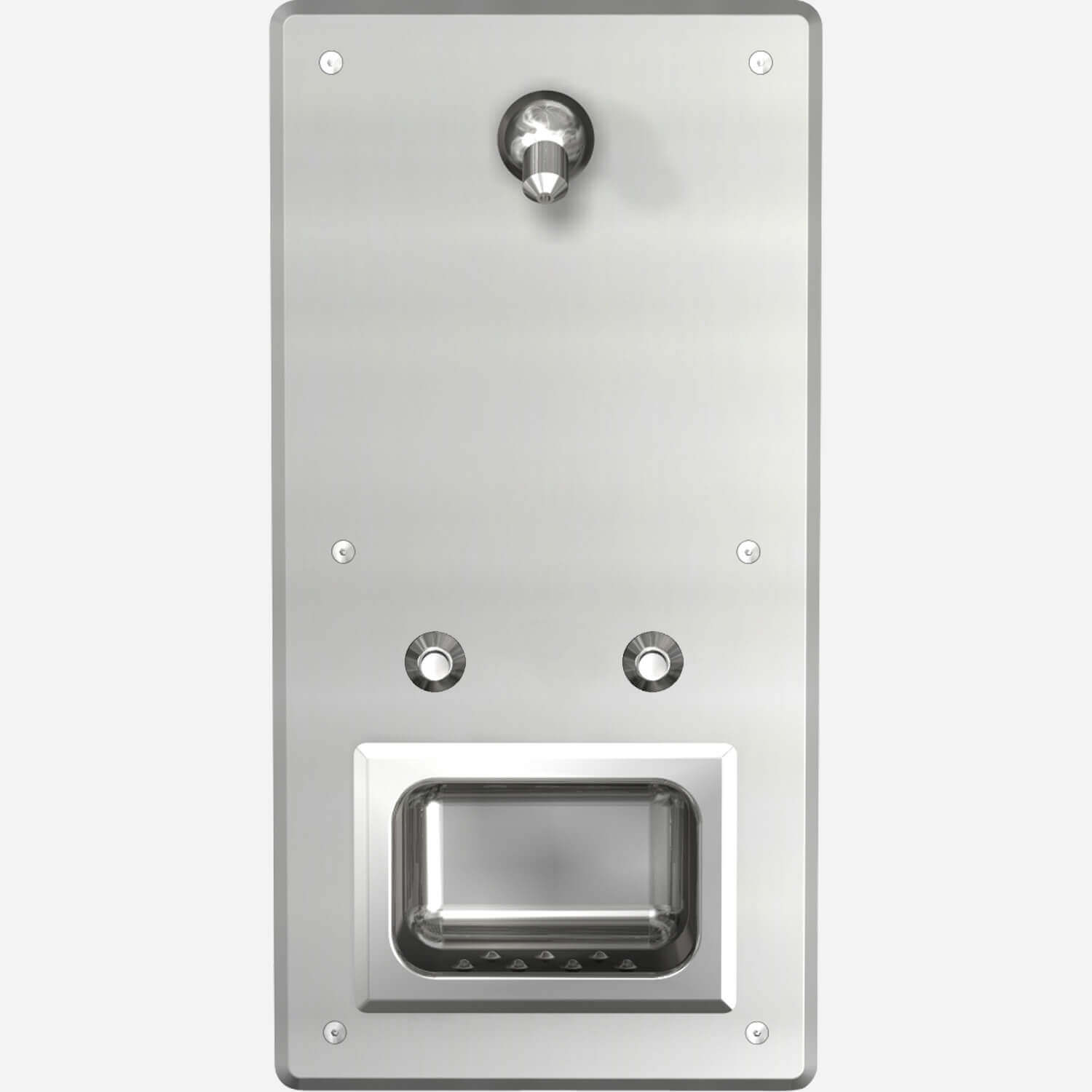

1741FA-04-M-RD
Hot & Cold Metered Pneumatic Push Button Air-Control® Valve; Recessed soap dish

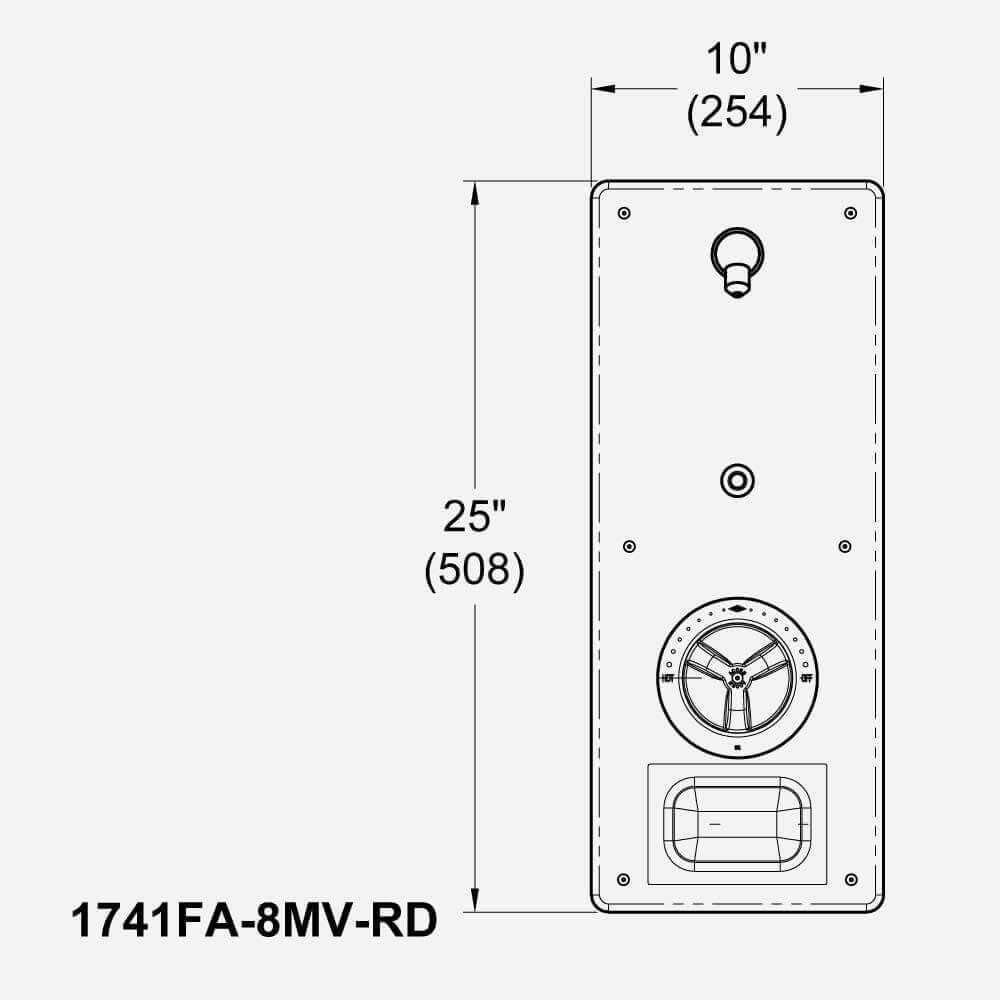

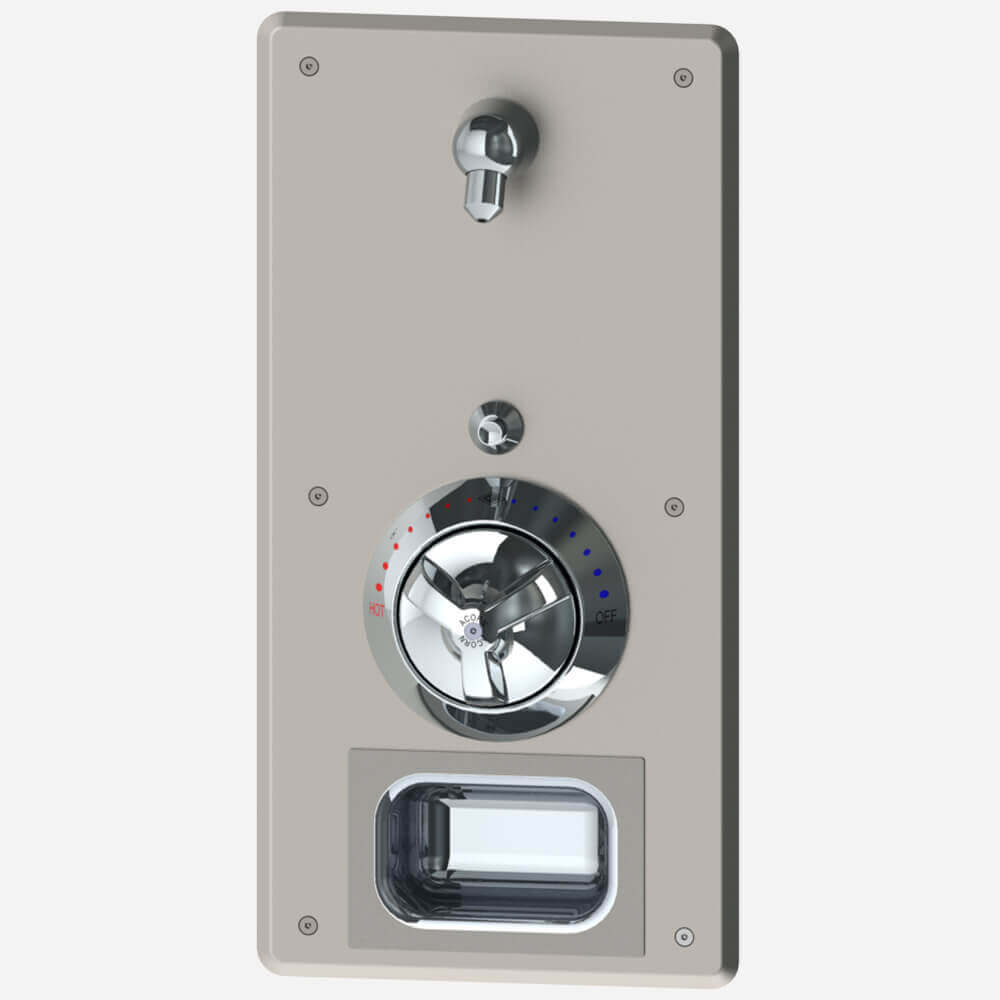

1741FA-8MV-RD
ASSE 1016 compliant Temperature-Pressure Balancing Mixing Valve; Metering valve in the riser; recessed soap dish
ELECTRONIC VALVES-The following electronic valve options are available:
Master-Trol® -EVS1 | Single Temperature; -EVS2 | Hot and Cold; -EVSP1 | Single Temperature with Piezo Button; -EVSP2 | Hot and Cold wth Piezo Buttons
Master-Trol® Plus -MTP1 | Single Temperature; -MTP2 | Hot and Cold; -MTPP1 | Single Temperature with Piezo Button; -MTPP2 | Hot and Cold wth Piezo Buttons
Time-Trol® -MVC1 | Single Temperature; -MVC2 | Hot and Cold
Programmable Piezo Buttons -PPZ1 | Single Temperature; -PPZ2 | Hot and Cold
